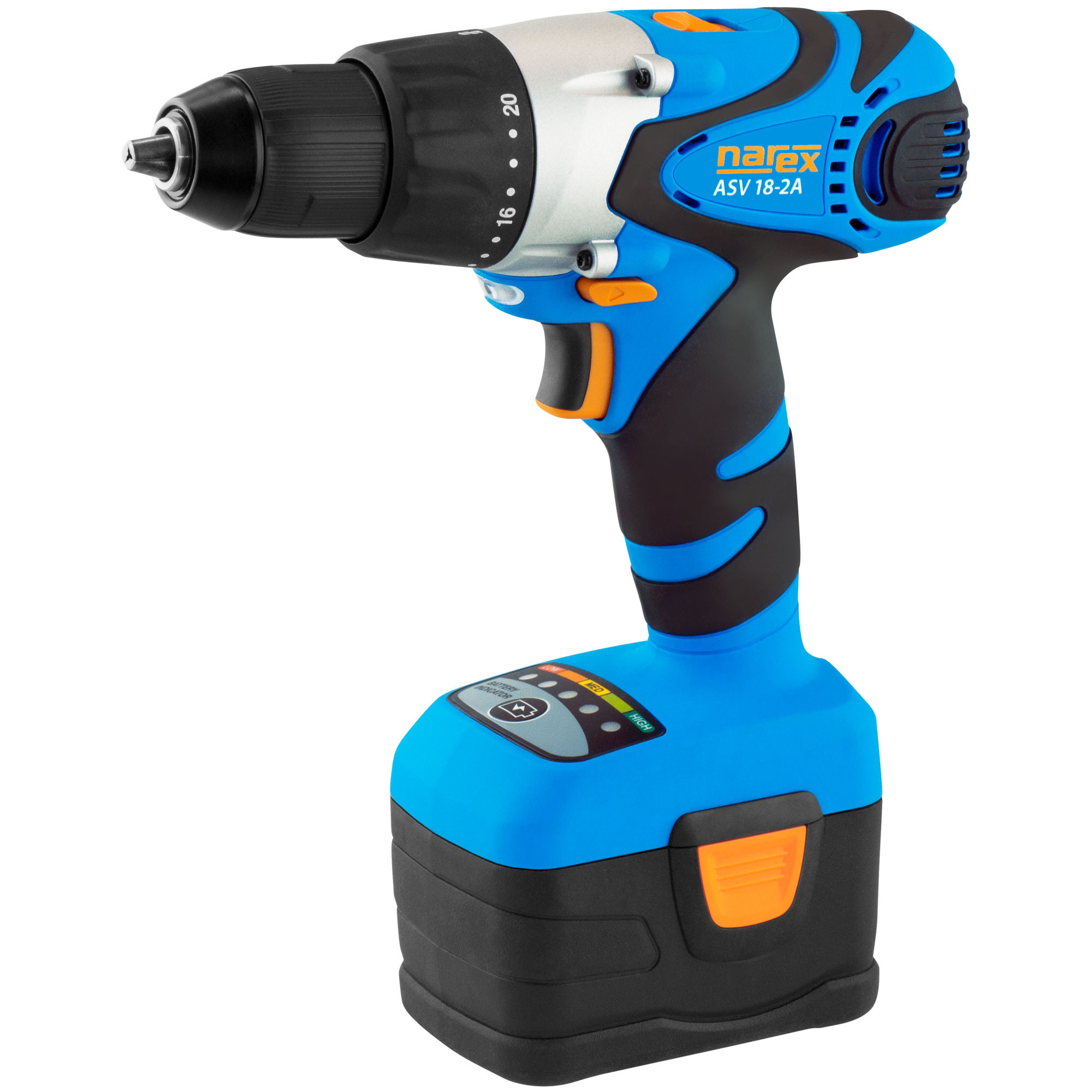

ASV 18-2A (T-Loc)

13mm drilling screwdriver with a high torque – 65403766 1 # sticker_description_8 #

13mm drilling screwdriver with a high torque – 65403766 2 13mm drilling screwdriver with a high torque – 65403766 3 ASV 18-2A (T-Loc)

13mm drilling screwdriver with a high torque

Technical parameters
Voltage18,0 V
Battery capacity3,0 Ah
No load speed
… 1st speed0–460 rpm
… 2nd speed0–1 600 rpm
Max.torque60 Nm
Max. drilling dia.
… Wood40 mm
… Steel13 mm
Chuck span1,5–13 mm
Spindle thread1/2"-20 UNF
Charge time~45 min
Weight with battery pack (typ)2,2 kg
EAN 138590163889465

more parameters

Order number65403766

Two-speed gearbox Electronic speed control RH - LH run Runout brake Automatic spindle lock Service display Packing in Systainer T-Loc

Find a shop

  • suitable for industrial production, installation, assembly and maintenance
  • a new more powerful motor and robust all-metal gearbox increase tightening power of the device and extend its service life
  • aluminium gearbox casing and multi-seated spindle increase stability and rigidity of the whole transmission unit
  • two-speed gearbox enables to select the optimum speed range depending on the kind of material and character of performed work
  • 21-step setting of the tightening torque makes the process of tightening more effective and improves continuity of labour
  • electronic unit with overload protection protects the motor and extends its service life
  • new, more-effective Li-Ion cells with a higher capacity offer a longer battery lifetime, they do not suffer from the so called memory effect and are environment friendly
  • ergonomically shaped handle with soft rubberized accessories improves device holding, control and handling
  • integrated LED for working zone lighting

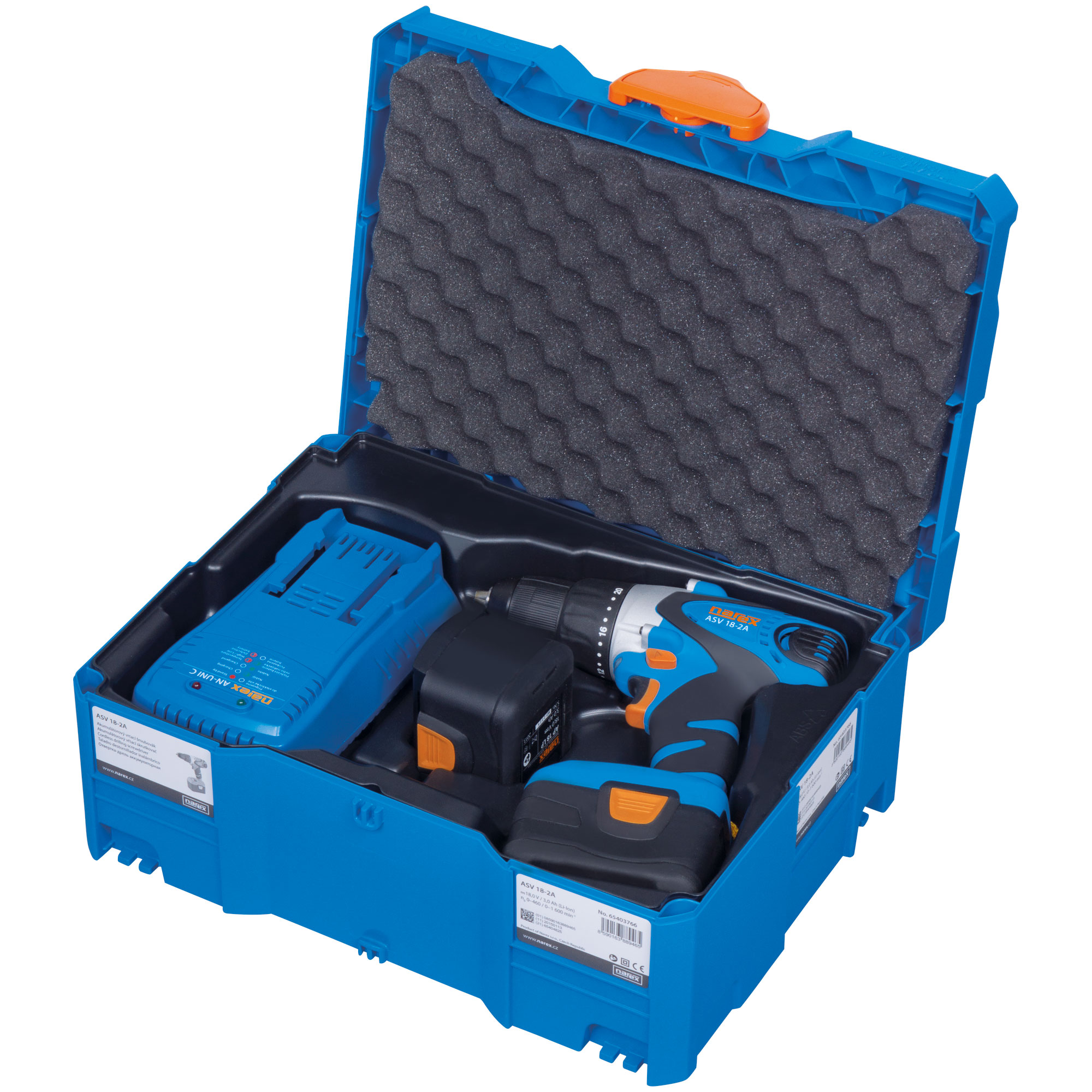

  • 2× accumulator batteries AP 18 LP
  • charger AN-UNI C
  • systainer SYS-TL 2
