Vrtačky

Drills
powerful, robust with wide range of application

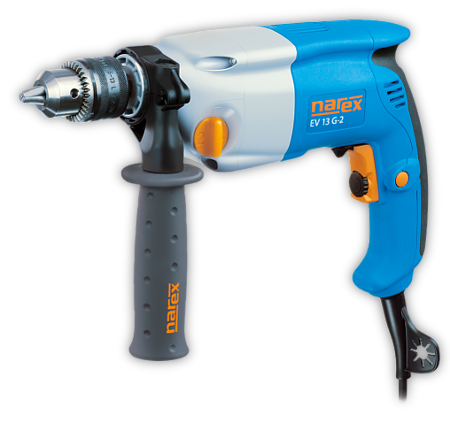

EV 13 G-2

Technical data
Rated power input760 W
Max  drilling (in steel / in aliminium / in wood)13/20/45 mm
No load speed Speed 10-1 000 minˉ¹
Speed 20-3 050 minˉ¹
Max torque 1st/2nd gear44/15 Nm
Chuck capacity1,5-13 mm
Spindle thread1/2"-20 UNF
Clamping neck diameter43 mm
Weight2,5 kg
Electronic revolution control Electronic revolution control
prevents damage of engine if the tool gets stuck Two-speed gearbox Two-speed gearbox
for mechanical adjustment of required revolutions Right / left run Right / left run
for screwing in and out
Catalogue No. 65 404 729
Recommended retail price excl. VAT 3 297 CZK 133,33 €

Scope of supply: toothed chuck, SOFTGRIP auxiliary handle, stop rod for drilling depth setting

EV 13 G-2

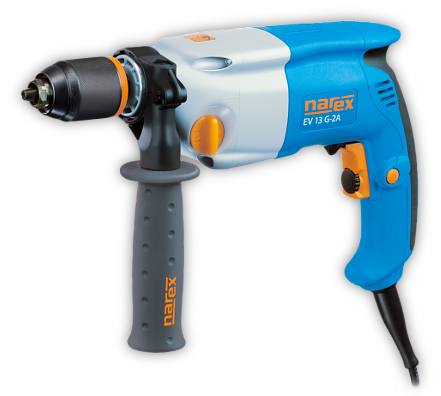

EV 13 G-2A

Technical data
Rated power input760 W
Max  drilling (in steel / in aliminium / in wood)13/20/45 mm
No load speed Speed 10-1 000 minˉ¹
Speed 20-3 050 minˉ¹
Max torque 1st/2nd gear44/15 Nm
Chuck capacity1,5-13 mm
Spindle thread1/2"-20 UNF
Clamping neck diameter43 mm
Weight2,5 kg
Electronic revolution control Electronic revolution control
prevents damage of engine if the tool gets stuck Two-speed gearbox Two-speed gearbox
for mechanical adjustment of required revolutions Right / left run Right / left run
for screwing in and out Automatic spindle lock Automatic spindle lock
allows tool exchange with one hand only Packed in systainer Packed in systainer
system of practical placement of machine and accessories
Catalogue No. 65 404 730
Recommended retail price excl. VAT 4 123 CZK 166,66 €

Scope of supply: quick-fastening chuck, SOFTGRIP auxiliary handle, stop rod for drilling depth setting, systainer

EV 13 G-2A
systainer
Vrtačky se zvlášť vysokým utahovacím momentem<

Drills
with extremely high torque

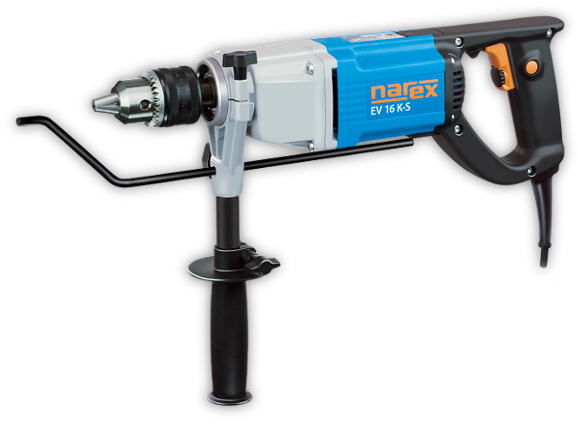

EV 16 K-S

Technical data
Rated power input1 100 W
Max  drilling (in steel / in aliminium / in wood)20/28/65 mm
No load speed0-650 minˉ¹
Max. utahovací moment98 Nm
Chuck capacity3-16 mm
Spindle thread5/8"-16 UNF
Clamping neck diameter57 mm
Weight3,2 kg
Electronic revolution control Electronic revolution control
prevents damage of engine if the tool gets stuck High torque High torque
high torque machine Right / left run Right / left run
for screwing in and out
Catalogue No. 65 404 731
Recommended retail price excl. VAT 4 537 CZK 183,33 €

Scope of supply: toothed chuck with safety lock, telescopic auxiliary handle, stop rod for drilling depth setting

EV 16 K-S

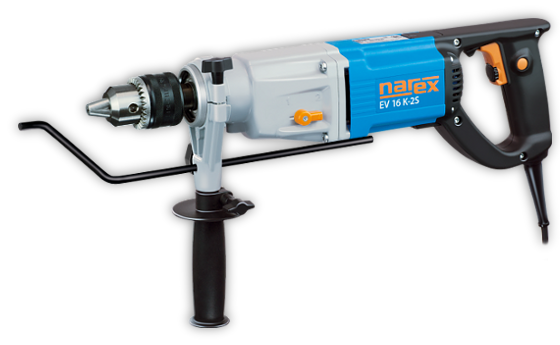

EV 16 K-2S

Technical data
Rated power input1 100 W
Max  drilling (in steel / in aliminium / in wood)20/28/50 mm
No load speed Speed 10-1 000 minˉ¹
Speed 20-1 600 minˉ¹
Max torque 1st/2nd gear62/35 Nm
Chuck capacity3-16 mm
Spindle thread5/8"-16 UNF
Clamping neck diameter57 mm
Weight3,8 kg
Electronic revolution control Electronic revolution control
prevents damage of engine if the tool gets stuck Right / left run Right / left run
for screwing in and out Two-speed gearbox Two-speed gearbox
for mechanical adjustment of required revolutions
Catalogue No. 65 404 732
Recommended retail price excl. VAT 5 363 CZK 216,66 €

Scope of supply: toothed chuck with safety lock, telescopic auxiliary handle, stop rod for drilling depth setting

EV 16 K-2S
